Gearbox Gear Belt Drive Set With Motor Gear For Axial 1:10 SCX10 II Trail Honcho / SCX10 II Jeep Cherokee Rock Crawler Upgrades
$14.90 USD
- This product uses belt drive, which can effectively reduce the noise of the gearbox and reduce the shaft effect compared to traditional metal drive. ***Please note that the power of belt drive is smaller than that of gear drive. If you have high power requirements for your device, please consider purchasing it carefully.
- To ensure product compatibility, please be sure to measure the size of your motor shaft before purchasing. This product is suitable for motor shafts with an inner diameter of 3.175, of which the large gear is a general specification.
- Installation steps: (1) First put the metal plate of the original gearbox into the designated position ; (2) Select the friction plate of the corresponding size and stick it accurately into the groove of the corresponding pulley ; (3) Place the bearing in the middle of the device ; (4) Install the original metal plate, limit anti-skid spring and nut in sequence, and ensure that they are firmly installed ; (5) First install the two gears relatively close to each other so that the belt can be put on them, and then adjust the distance between the gears to keep the belt in a tightened state.

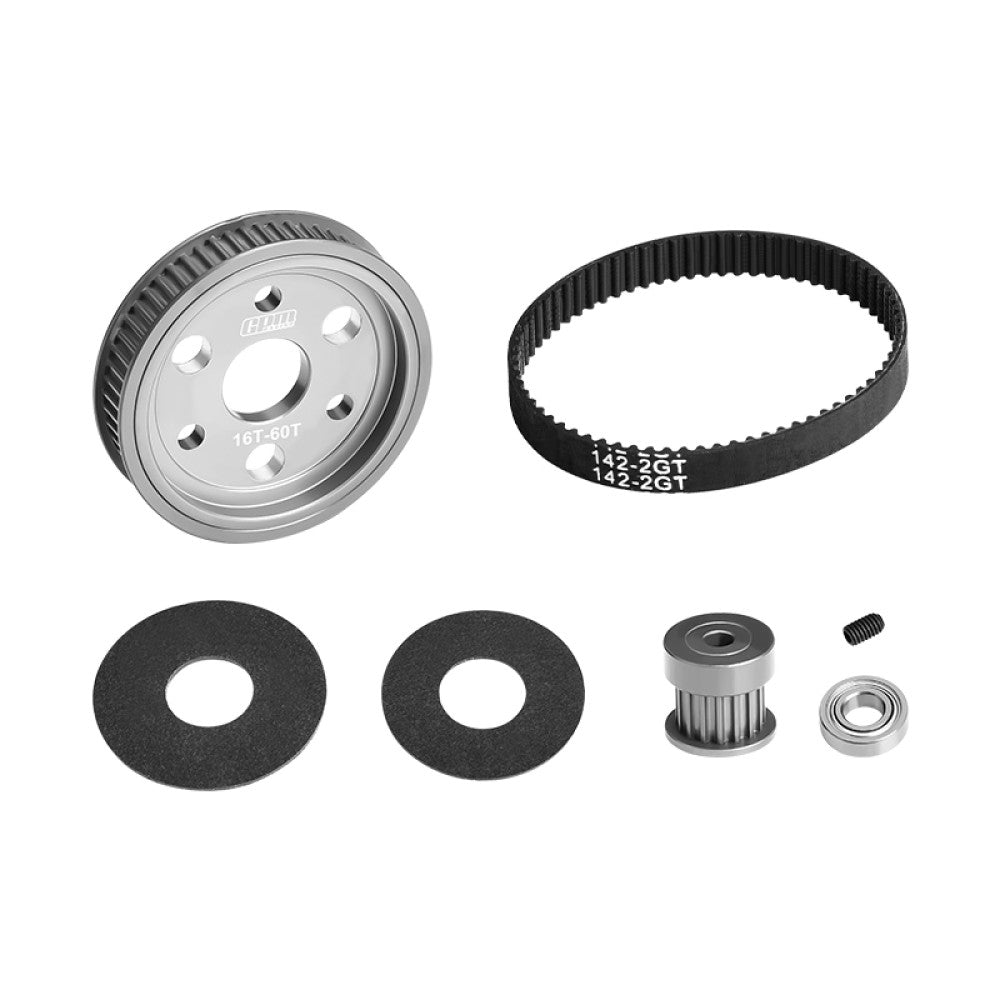

- Package includes : Spur Gear 60T-1pc ; Pinion Gear 16T-1pc ; Belt 142mm-1pc ; Friction disc 12x32x0.8-1pc ; Friction disc 12x28x0.8-1pc ; Bearing 5x11x3-1pc ; Set Screws 3x5-1pc.
- Suitable model : Axial 1/10 SCX10 II Trail Honcho 4WD Rock Crawler Brushed RTR-AXID9059, 1/10 SCX10 II Jeep Cherokee 4WD Rock Crawler Kit-AXIC9046, 1/10 SCX10 II Jeep Cheroke 4WD Rock Crawler Brushed RTR-AXID9047.
