Brass Pendulum Wheel Knuckle Axle Weight + 21mm Hex Adapter For 1/10 Crawlers - 20Pc Set

$42.00 USD
  • This part is designed with a bearing in the middle with a delrin collar, the weight pendulum is made narrower on the top and wider at the bottom to allow you to crawl in different angles. The additional weight is kept downward so the crawler is more grabby to the ground and able to crawl in a larger angle.

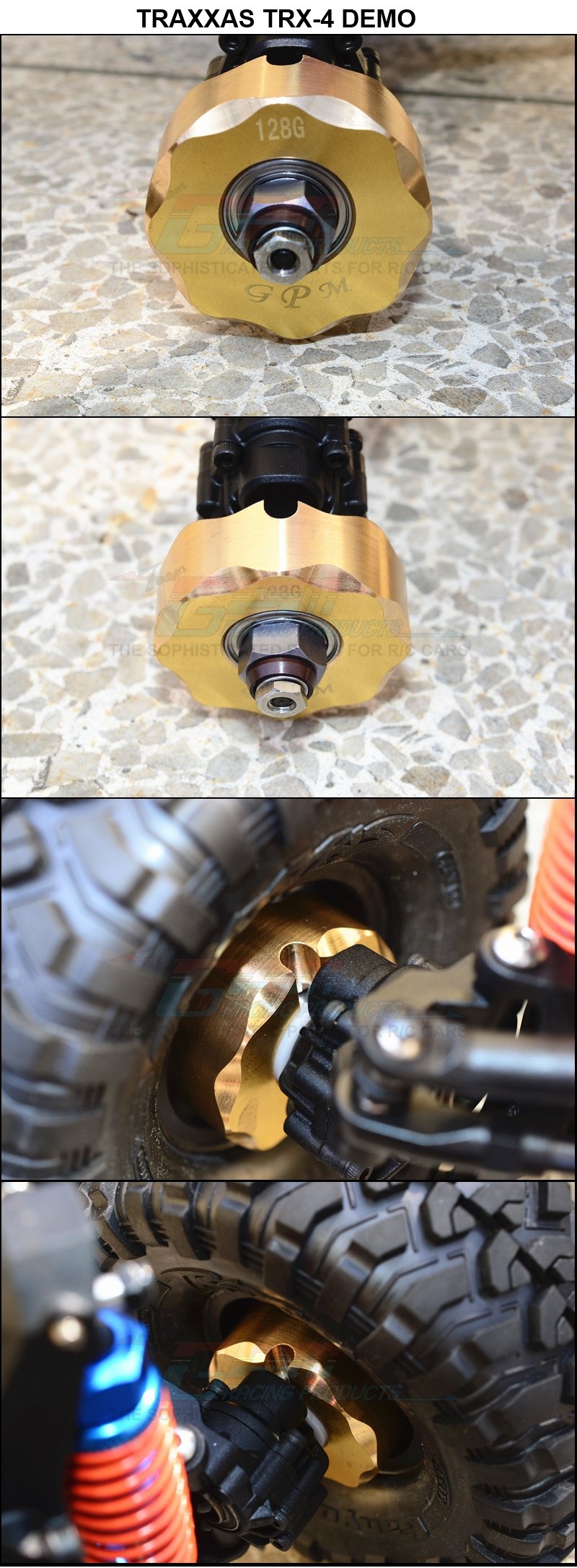

  • Install onto the outer case of the front & rear knuckle arms to keep the gravity of the chassis stays heavy and low. The weight of the single pendulum is 128 gram (excluding bearings and collars). Two sets of hex wideners are provided - 31mm for Traxxas TRX-4 (26mm wider than original) ; 21mm for Axial SCX-10 I / SCX-10 II / GMADE Sawback / Sawback 4LS / Komodo ; 15mm for HPI Venture 116564 (15mm wider than original).

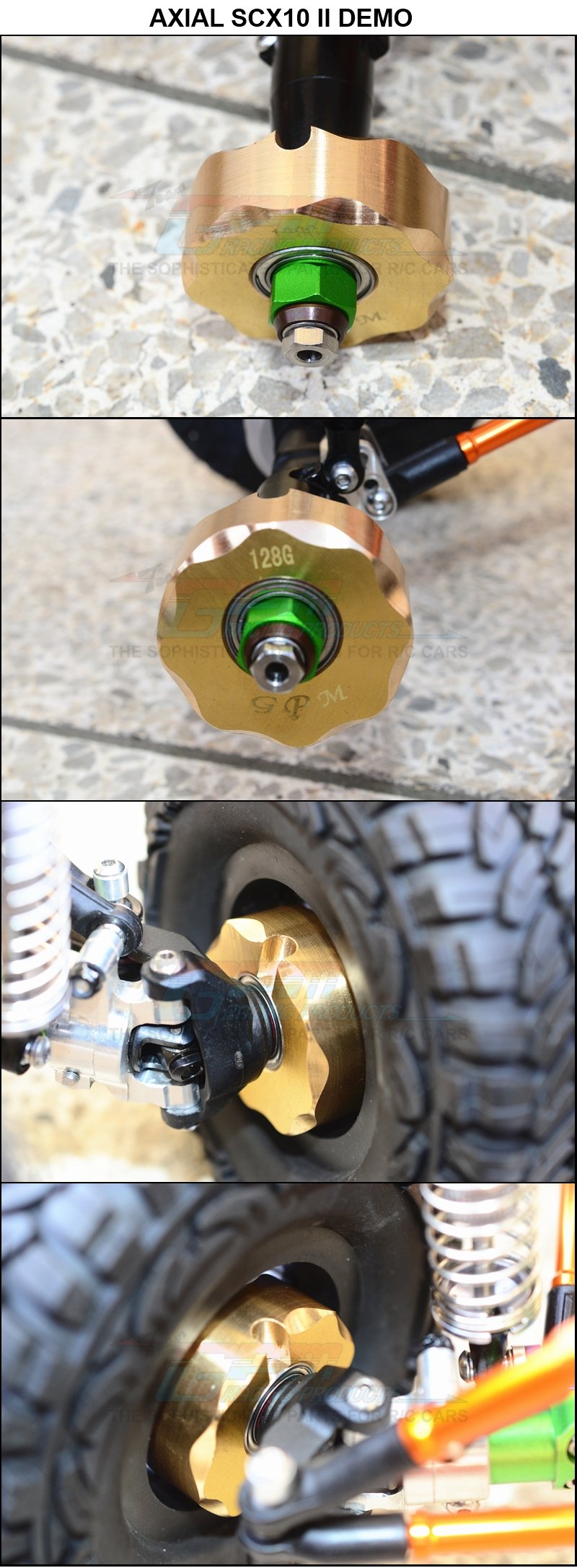

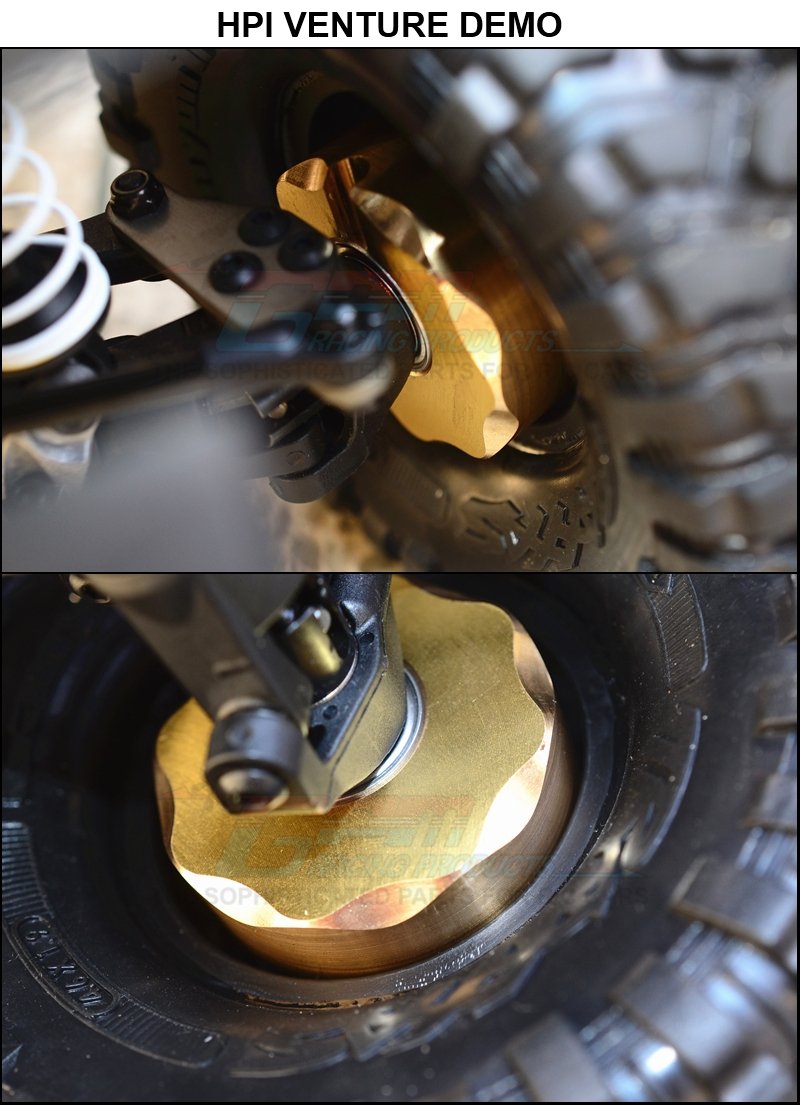

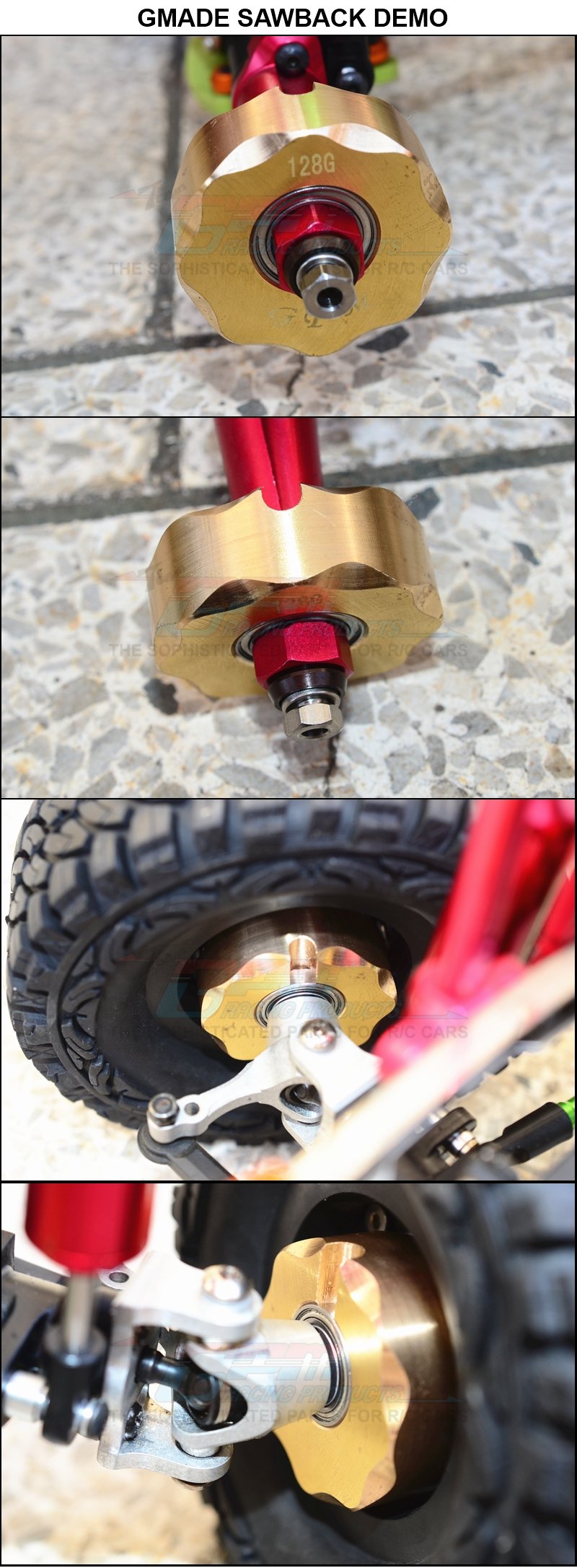

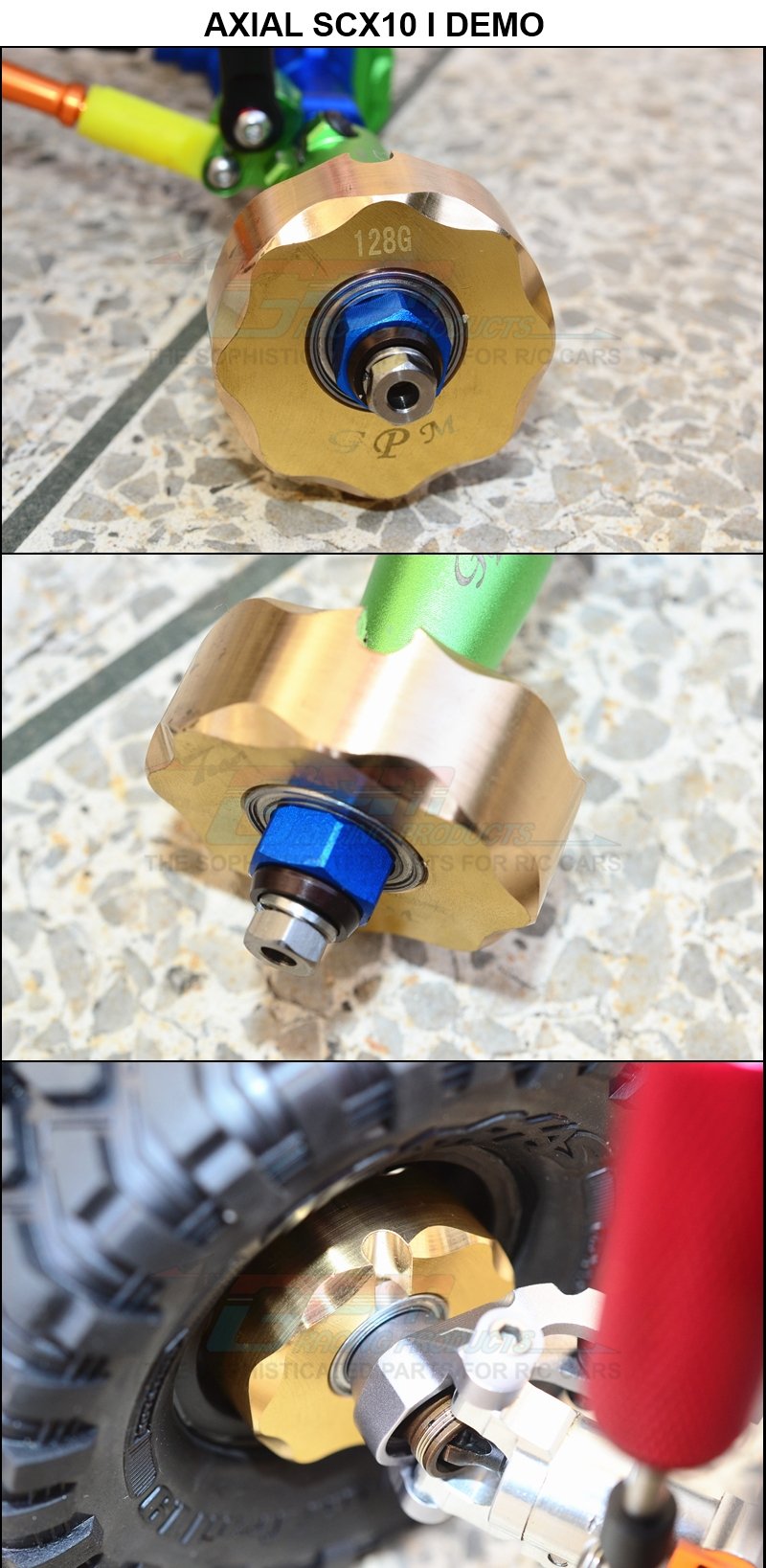

  • This product is ONLY suitable for wheels with 5mm thread hole and minimum 45mm inner diameter. To use with TRX 4, insert the white delrin collars on the back side of the pendulum wheel with groove and use the screw pin to stabilize the hex. To use with Axial SCX-10 I & II, GMADE Sawback / Sawback 4LS / Komodo, HPI Venture 116564, insert the bearings on both sides, install hex directly onto the steel pin. Additional note : The 2pcs of metal washers are for GMADE cars - put underneth the rear shaft hex pins.

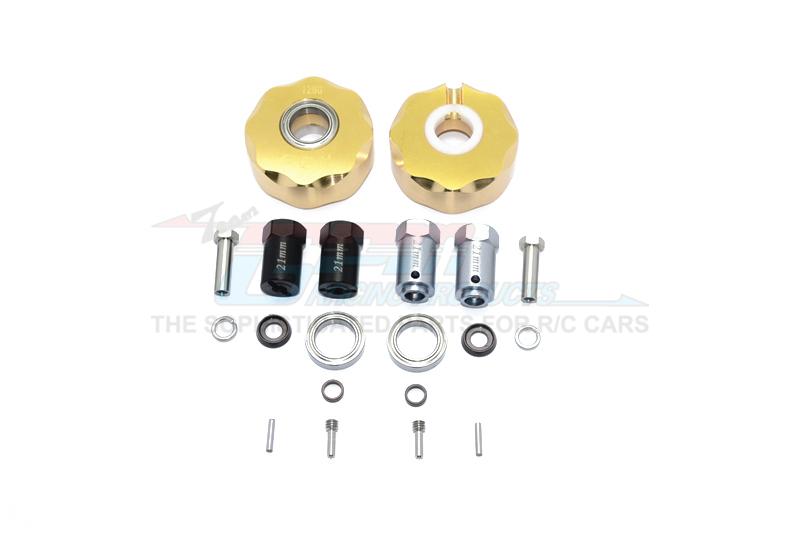

  • Accessories included : 31mm Hex Adapter for TRX4-2pcs ; 21mm Hex Adapter for other models-2pcs ; Stainless Steel Pin 2x10-2pcs ; 5mm Spring Steel Shims-2pcs ; 5mm Metal Washer w.opening-2pcs ; 19mm Stainless Steel Hex Socket Screws-2pcs ; Metal Washer for GMADE models-2pcs ; M4x2.5x11 Pin-2pcs 12x18x4 Bearings -2pcs.
  • Will fit : 1/10 Traxxas TRX-4 / Axial SCX-10 I & II / HPI Venture 116564 / GMADE Sawback / Sawback 4LS / KOMODO
